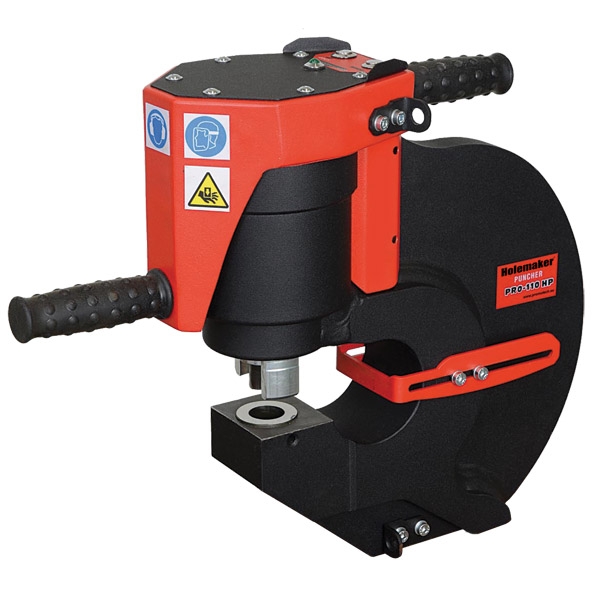

Holemaker PRO 110 HP Hydraulic Punch

Specifications:

• Quality European manufacture.

• Double action hydraulic punches.

• Wide range of hole diameters up to 27mm.

• Heavy duty fabricated steel construction.

• Intelligent control system with inching and automatic load detection.

• Mode indicator light.

• Protection against accidental start-up.

• Easy to handle both in and out of working positions.

• All connecting ports located at the rear of machine.

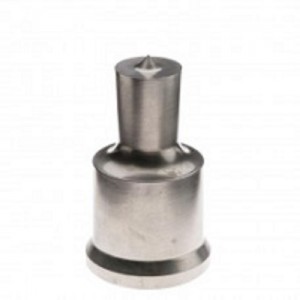

• Wide range of special-shaped punches and dies available on request.

• Can be used with Double Action Hydraulic Power Pack HPP 700.

Features:

• Max Plate Thickness: 16mm
• Max. Throat Depth: 100mm
• Max Hole: Ø 27mm
• Max. Oval Hole: 25 x 18mm
• Punching Time: 8 Seconds
• Punching Power: 47 ton
• Working Pressure: 10152 PSI
• Weight: 35kg
