Diamond EP2110V Handy Puncher

ELECTRO-HYDRAULIC PUNCHER

This new product line from DIAMOND has been developed to save you time and money.
Fast punching action produces burr-free, round and oval holes in a fraction of the time required by conventional methods. Small in size and light in weight, they can be used on job site, thus eliminating time wasted taking the workpieces to a fixed work station.

Features:

– Interchangeable punch & dies cover a wide range of hole sizes.

– Powerful electro-hydraulic action produces perfect results time after time.

– Suitable for iron, steel and aluminium workpieces.

– Simple and safe to use – just position the workpiece and press the button.

No cooling lubricant required. No danger of flying chips.

– Adjustable guide facilitates positioning.

– Steel carrying case included.

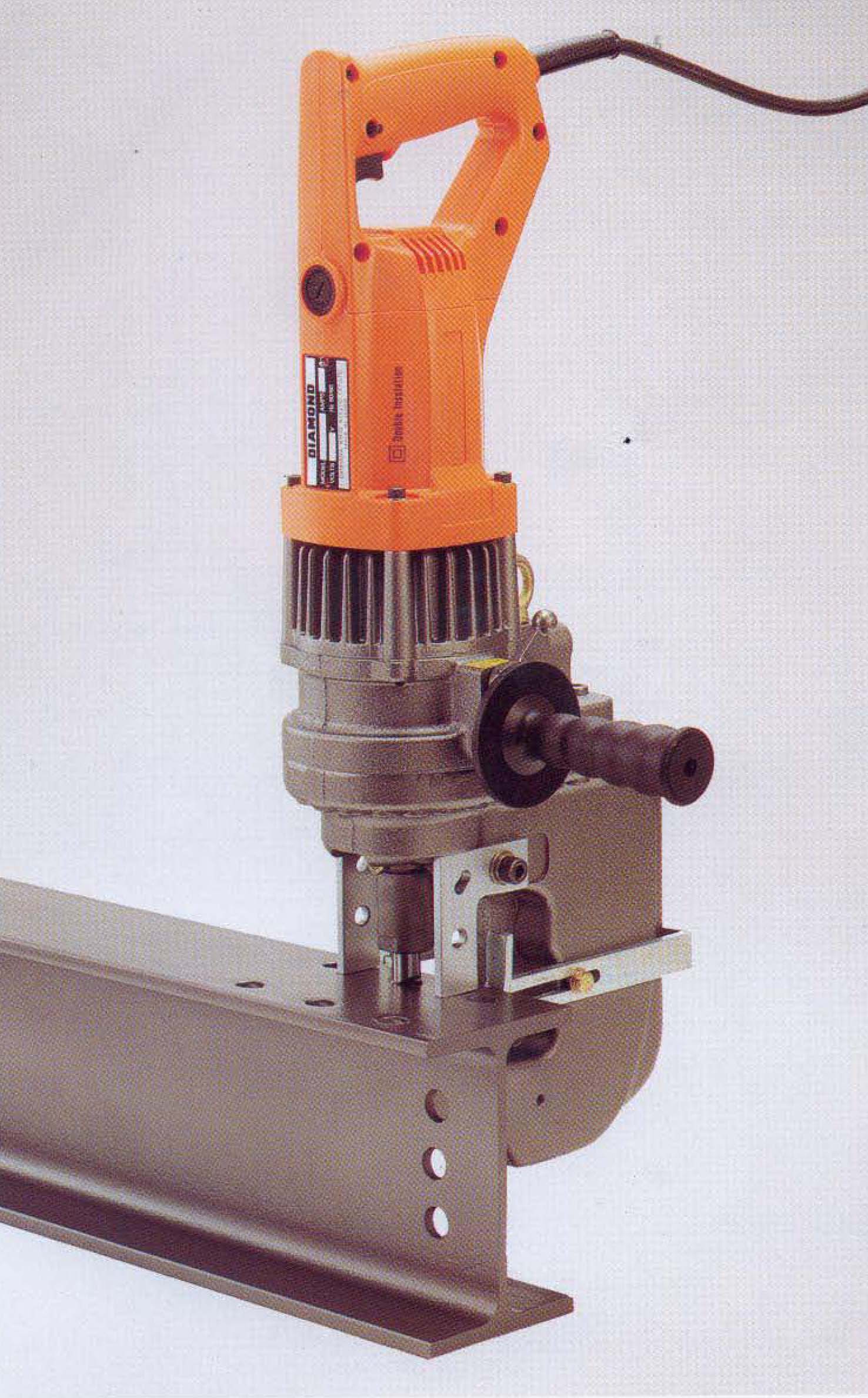

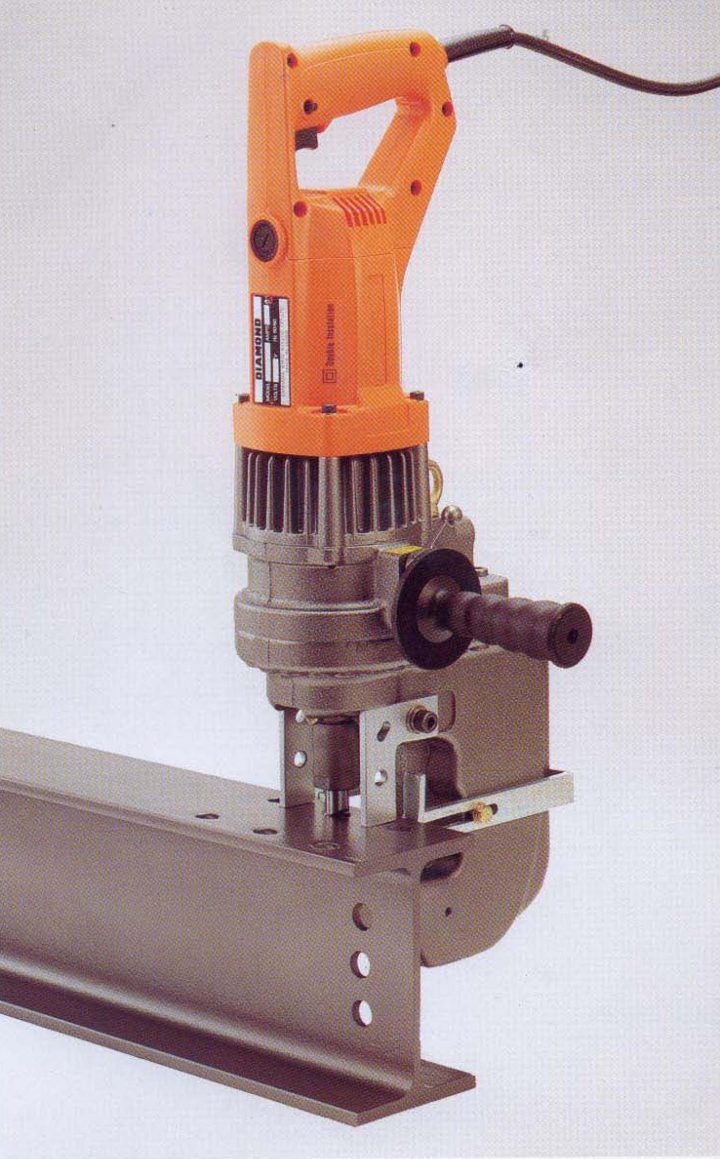

EP-2110V

Heavy duty model for bars up to 10 mm thick. Ideal for all popular bar configurations including

H beams. Punch/die sets are available in three series (AH, WH & W) to accomodate channel

bars and H beams of widely differing dimensions. Covers punch/die ranges D, G.

Comes with 14mm ø punch & die set, side handle, tool kit, stand and steel carrying case.

Max. hole size round             21 mmø

Elliptical                                 18.2 X 22 mm

Max. material thickness

Mild Steel Fe. Al.                   10 mm

Stainless Steel                         6 mm

Throat depth                         65.0 mm

Power supply                        AC 115V / 220V / 240V

Dimensions                           W 138 X 217 X 554 mm

Weight                                   W 21.2 Kg
